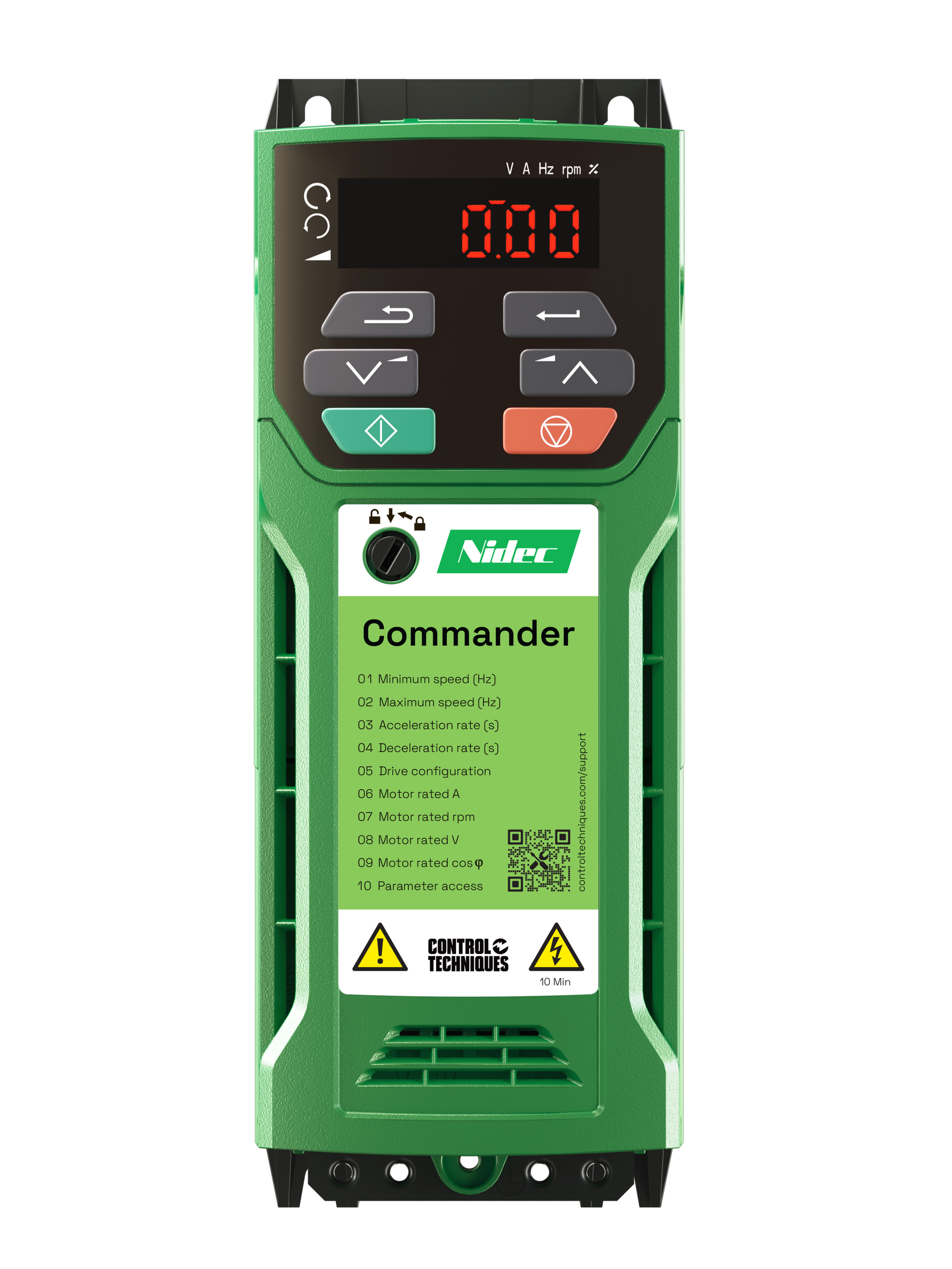

Commander C300 PM frequentieregelaar - Control Techniques
Productbeschrijving
De Commander C300 PM van Control Techniques stuurt sensorless permanent magneet motoren aan, gecombineerd met machineveiligheid door de beschikbaarheid van twee Safe Torque Off ingangen. Deze regelaar beschikt ook over Fire mode.
Fabrieksgarantie
De Commander C wordt geleverd met 5 jaar gratis fabrieksgarantie! Vraag naar de voorwaarden.
Kenmerken
- Flexibele integratie door middel van vele beschikbare veldbussen
- Logicablokken, PID, Motorpot
- Fire mode
- Thermistor ingang
- Dubbele STO (Safe Torque Off)
- PLC onboard (CoDeSys)
- SD kaart optie voor het opslaan en kopiëren van parameters en/of PLC programma's
- 24 V backup optie
- RS485 / Modbus RTU optie
Video
Video's zijn beschikbaar op het Nidec Drives Youtube kanaal.
Commander C300 PM video's
Commander C Out of Box to Running
Commander C PID Controller
Accessing Control Techniques Drives using Modbus
Basic EtherNet IP
Commander C AC Drives (Features & Benefits)
Diagnostic Tool
De Commander C300 PM is opgenomen in de Diagnostic Tool. Diagnostic Tool is een eenvoudig te gebruiken App met storingsinformatie en mogelijke oplossingen. In de App zijn ook alle aansluitschema's voor hoofd- en stuurstroom opgenomen.
Commander C simulator
De Commander C simulator is een digitale replica van een Commander C, aangesloten op een motor en voorzien van I/O. Op de regelaar kunnen daadwerkelijk parameters worden ingesteld en met de schakelaars kan worden gestart en gestopt.
Download
Productvideo
Download onze brochure
Veelgestelde vragen
Specificaties
Specificaties | |
---|---|
Life Cycle | Active |
Range | OEM Drives |
Vermogen (kW) | 0,25 - 132 kW |
Stroom @ 40°C | 1,7 - 266 A |
Spanning | 110, 230, 400, 575, 690 V |
Maximum uitgangsfrequentie | 550 Hz |
Schakelfrequentie | 2, 3, 4, 6, 8, 12 kHz |
IP20 beschermingsgraad | |
Conformal Coating | |
Remchopper | |
EMC filter (EN61800-3) |
Control Mode | |
---|---|
Sensorless Permanent Magneet motor control |
I/O | |
---|---|
+10 V uitgang (voor potmeter) | |
+24 V uitgang | |
Analoge ingang (V-mA) | 1 |
Analoge ingang (V) / Digitale ingang | 1 |
Analoge uitgang (V) | 1 |
Digitale ingang | 3 |
Digitale ingang / PTC of PT sensor ingang / Fr ingang | 1 |
Relais | 1 |
Machine veiligheid | |
---|---|
2 x Safe Torque Off (STO) ingang |
Communicatie en HMI | |
---|---|
LED display | |
Programmeren en diagnose via PC |
Onboard intelligentie | |
---|---|
PLC |
Functionaliteit | |
---|---|
Standby mode | |
Fire mode | |
Stilstandsverwarming | |
Remlogica |
Opties en adapters | |
---|---|
SI-Optieslots | 1 |
AI-Adapterslots | 1 |
Kenmerken:
Artikel | Type | Artikelnummer | Frame | Voedingsspanning | Motorspanning (V) | Vermogen Heavy Duty | Vermogen Normal Duty | Nominaalstroom Heavy Duty | Nominaalstroom Normal Duty | Piekstroom Heavy Duty | Piekstroom Normal Duty | Afmetingen (b x h x d) | Gewicht | Beschermingsgraad | Warmteverliezen @ 40°C (min-max) | Zekeringen (IEC) | Minimale remweerstandswaarde | SI-Slots | AI-slots | Safe Torque Off ingang(en) | On board PLC | Fire mode |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
C300-011-00017 PM | C300-011-00017 PM | C300-01100017A14100AB100 | 1 | 1 fase 100-120 VAC | 3 fasen 200-240 VAC | 0,25 kW | - | 1,7 A | - | 150% | - | 75 x 160 x 130 mm | 0,75 kg | IP20 | 23 - 35 W | 1 fase 10 A gG | 130 Ohm | 1 | 1 | 2 | JA | JA |
C300-011-00024 PM | C300-011-00024 PM | C300-01100024A14100AB100 | 1 | 1 fase 100-120 VAC | 3 fasen 200-240 VAC | 0,37 kW | - | 2,4 A | - | 150% | - | 75 x 160 x 130 mm | 0,75 kg | IP20 | 27 - 44 W | 1 fase 16 A gG | 130 Ohm | 1 | 1 | 2 | JA | JA |
C300-012-00017 PM | C300-012-00017 PM | C300-01200017A14100AB100 | 1 | 1 fase 200-240 VAC | 3 fasen 200-240 VAC | 0,25 kW | - | 1,7 A | - | 150% | - | 75 x 160 x 130 mm | 0,75 kg | IP20 | 21 - 33 W | 1 fase 6 A gG | 130 Ohm | 1 | 1 | 2 | JA | JA |
C300-012-00024 PM | C300-012-00024 PM | C300-01200024A14100AB100 | 1 | 1 fase 200-240 VAC | 3 fasen 200-240 VAC | 0,37 kW | - | 2,4 A | - | 150% | - | 75 x 160 x 130 mm | 0,75 kg | IP20 | 24 - 41 W | 1 fase 6 A gG | 130 Ohm | 1 | 1 | 2 | JA | JA |
C300-012-00033 PM | C300-012-00033 PM | C300-01200033A14100AB100 | 1 | 1 fase 200-240 VAC | 3 fasen 200-240 VAC | 0,55 kW | - | 3,3 A | - | 150% | - | 75 x 160 x 130 mm | 0,75 kg | IP20 | 31 - 53 W | 1 fase 10 A gG | 130 Ohm | 1 | 1 | 2 | JA | JA |
C300-012-00042 PM | C300-012-00042 PM | C300-01200042A14100AB100 | 1 | 1 fase 200-240 VAC | 3 fasen 200-240 VAC | 0,75 kW | - | 4,2 A | - | 150% | - | 75 x 160 x 130 mm | 0,75 kg | IP20 | 38 - 65 W | 1 fase 16 A gG | 130 Ohm | 1 | 1 | 2 | JA | JA |
C300-021-00042 PM | C300-021-00042 PM | C300-02100042A14100AB100 | 2 | 1 fase 100-120 VAC | 3 fasen 200-240 VAC | 0,75 kW | - | 4,2 A | - | 150% | - | 75 x 205 x 150 mm | 1,0 kg | IP20 | 39 - 55 W | 1 fase 20 A gG | 68 Ohm | 1 | 1 | 2 | JA | JA |
C300-021-00056 PM | C300-021-00056 PM | C300-02100056A14100AB100 | 2 | 1 fase 100-120 VAC | 3 fasen 200-240 VAC | 1,1 kW | - | 5,6 A | - | 150% | - | 75 x 205 x 150 mm | 1,0 kg | IP20 | 51 - 73 W | 1 fase 25 A gG | 68 Ohm | 1 | 1 | 2 | JA | JA |
C300-022-00024 PM | C300-022-00024 PM | C300-02200033A14100AB100 | 2 | 1 / 3 fase(n) 200-240 VAC | 3 fasen 200-240 VAC | 0,37 kW | - | 2,4 A | - | 150% | - | 75 x 205 x 150 mm | 1,0 kg | IP20 | 25 - 33 W | 1 fase 6 A gG / 3 fasen 6 A gG | 68 Ohm | 1 | 1 | 2 | JA | JA |
C300-022-00033 PM | C300-022-00033 PM | C300-02200033A14100AB100 | 2 | 1 / 3 fase(n) 200-240 VAC | 3 fasen 200-240 VAC | 0,55 kW | - | 3,3 A | - | 150% | - | 75 x 205 x 150 mm | 1,0 kg | IP20 | 32 - 44 W | 1 fase 10 A gG / 3 fasen 10 A gG | 68 Ohm | 1 | 1 | 2 | JA | JA |
C300-022-00042 PM | C300-022-00042 PM | C300-02200042A14100AB100 | 2 | 1 / 3 fase(n) 200-240 VAC | 3 fasen 200-240 VAC | 0,75 kW | - | 4,2 A | - | 150% | - | 75 x 205 x 150 mm | 1,0 kg | IP20 | 39 - 55 W | 1 fase 16 A gG / 3 fasen 10 A gG | 68 Ohm | 1 | 1 | 2 | JA | JA |
C300-022-00056 PM | C300-022-00056 PM | C300-02200056A14100AB100 | 2 | 1 / 3 fase(n) 200-240 VAC | 3 fasen 200-240 VAC | 1,1 kW | - | 5,6 A | - | 150% | - | 75 x 205 x 150 mm | 1,0 kg | IP20 | 46 - 69 W | 1 fase 20 A gG / 3 fasen 16 A gG | 68 Ohm | 1 | 1 | 2 | JA | JA |
C300-022-00075 PM | C300-022-00075 PM | C300-02200075A14100AB100 | 2 | 1 / 3 fase(n) 200-240 VAC | 3 fasen 200-240 VAC | 1,5 kW | - | 7,5 A | - | 150% | - | 75 x 205 x 150 mm | 1,0 kg | IP20 | 62 - 87 W | 1 fase 20 A gG / 3 fasen 16 A gG | 68 Ohm | 1 | 1 | 2 | JA | JA |
C300-024-00013 PM | C300-024-00013 PM | C300-02400013A14100AB100 | 2 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 0,37 kW | - | 1,3 A | - | 150% | - | 75 x 205 x 150 mm | 1,0 kg | IP20 | 25 - 60 W | 3 fasen 6 A gG | 270 Ohm | 1 | 1 | 2 | JA | JA |
C300-024-00018 PM | C300-024-00018 PM | C300-02400018A14100AB100 | 2 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 0,55 kW | - | 1,8 A | - | 150% | - | 75 x 205 x 150 mm | 1,0 kg | IP20 | 29 - 67 W | 3 fasen 6 A gG | 270 Ohm | 1 | 1 | 2 | JA | JA |
C300-024-00023 PM | C300-024-00023 PM | C300-02400023A14100AB100 | 2 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 0,75 kW | - | 2,3 A | - | 150% | - | 75 x 205 x 150 mm | 1,0 kg | IP20 | 33 - 69 W | 3 fasen 6 A gG | 270 Ohm | 1 | 1 | 2 | JA | JA |
C300-024-00032 PM | C300-024-00032 PM | C300-02400032A14100AB100 | 2 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 1,1 kW | - | 3,2 A | - | 150% | - | 75 x 205 x 150 mm | 1,0 kg | IP20 | 41 - 71 W | 3 fasen 6 A gG | 270 Ohm | 1 | 1 | 2 | JA | JA |
C300-024-00041 PM | C300-024-00041 PM | C300-02400041A14100AB100 | 2 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 1,5 kW | - | 4,1 A | - | 150% | - | 75 x 205 x 150 mm | 1,0 kg | IP20 | 49 - 78 W | 3 fasen 10 A gG | 270 Ohm | 1 | 1 | 2 | JA | JA |
C300-032-00100 PM | C300-032-00100 PM | C300-03200100A14100AB100 | 3 | 1 / 3 fase(n) 200-240 VAC | 3 fasen 200-240 VAC | 2,2 kW | - | 10,0 A | - | 150% | - | 90 x 226 x 160 mm | 1,5 kg | IP20 | 85 - 117 W | 1 fase 25 A gG / 3 fasen 20 A gG | 45 Ohm | 1 | 1 | 2 | JA | JA |
C300-034-00056 PM | C300-034-00056 PM | C300-03400056A14100AB100 | 3 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 2,2 kW | - | 5,6 A | - | 150% | - | 90 x 226 x 160 mm | 1,5 kg | IP20 | 55 - 90 W | 3 fasen 10 A gG | 100 Ohm | 1 | 1 | 2 | JA | JA |
C300-034-00073 PM | C300-034-00073 PM | C300-03400073A14100AB100 | 3 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 3,0 kW | - | 7,3 A | - | 150% | - | 90 x 226 x 160 mm | 1,5 kg | IP20 | 72 - 113 W | 3 fasen 16 A gG | 100 Ohm | 1 | 1 | 2 | JA | JA |
C300-034-00094 PM | C300-034-00094 PM | C300-03400094A14100AB100 | 3 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 4,0 kW | - | 9,4 A | - | 150% | - | 90 x 226 x 160 mm | 1,5 kg | IP20 | 95 - 129 W | 3 fasen 16 A gG | 100 Ohm | 1 | 1 | 2 | JA | JA |
C300-042-00133 PM | C300-042-00133 PM | C300-04200133A14100AB100 | 4 | 1 / 3 fase(n) 200-240 VAC | 3 fasen 200-240 VAC | 3,0 kW | - | 13,3 A | - | 150% | - | 115 x 277 x 175 mm | 3,13 kg | IP20 | 101 - 160 W | 1 fase 25 A gG / 3 fasen 20 A gG | 22 Ohm | 1 | 1 | 2 | JA | JA |
C300-042-00176 PM | C300-042-00176 PM | C300-04200176A14100AB100 | 4 | 3 fasen 200-240 VAC | 3 fasen 200-240 VAC | 4,0 kW | - | 17,6 A | - | 150% | - | 115 x 277 x 175 mm | 3,13 kg | IP20 | 149 - 220 W | 1 fase 25 A gG / 3 fasen 25 A gG | 22 Ohm | 1 | 1 | 2 | JA | JA |
C300-044-00135 PM | C300-044-00135 PM | C300-04400135A14100AB100 | 4 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 5,5 kW | - | 13,5 A | - | 150% | - | 115 x 277 x 175 mm | 3,13 kg | IP20 | 142 - 294 W | 3 fasen 20 A gG | 50 Ohm | 1 | 1 | 2 | JA | JA |
C300-044-00170 PM | C300-044-00170 PM | C300-04400170A14100AB100 | 4 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 7,5 kW | - | 17,0 A | - | 150% | - | 115 x 277 x 175 mm | 3,13 kg | IP20 | 165 - 294 W | 1 fase 25 A gG | 50 Ohm | 1 | 1 | 2 | JA | JA |
C300-052-00250 PM | C300-052-00250 PM | C300-05200250A14100AB100 | 5 | 3 fasen 200-240 VAC | 3 fasen 200-240 VAC | 5,5 kW | 7,5 kW | 25 A | 30 A | 150% | 110% | 143 x 391 x 200 mm | 7,4 kg | IP20 | 236 - 356 W | 3 fasen 40 A gG | 19 Ohm | 1 | 1 | 2 | JA | JA |
C300-054-00270 PM | C300-054-00270 PM | C300-05400270A14100AB100 | 5 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 11 kW | 15 kW | 27 A | 30 A | 150% | 110% | 143 x 391 x 200 mm | 7,4 kg | IP20 | 276 - 362 W | 3 fasen 40 A gG | 38 Ohm | 1 | 1 | 2 | JA | JA |
C300-054-00300 PM | C300-054-00300 PM | C300-05400300A14100AB100 | 5 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 15 kW | - | 30 A | - | 150% | - | 143 x 391 x 200 mm | 7,4 kg | IP20 | 297 - 441 W | 3 fasen 40 A gG | 22 Ohm | 1 | 1 | 2 | JA | JA |
C300-055-00030 PM | C300-055-00030 PM | C300-05500030A14100AB100 | 5 | 3 fasen 500-575 VAC | 3 fasen 500-575 VAC | 1,5 kW | 2,2 kW | 3,0 A | 3,9 A | 150% | 110% | 143 x 391 x 200 mm | 7,4 kg | IP20 | 73 - 223 W | 3 fasen 10 A gG | 80 Ohm | 1 | 1 | 2 | JA | JA |
C300-055-00040 PM | C300-055-00040 PM | C300-05500040A14100AB100 | 5 | 3 fasen 500-575 VAC | 3 fasen 500-575 VAC | 2,2 kW | 4,0 kW | 4,0 A | 6,1 A | 150% | 110% | 143 x 391 x 200 mm | 7,4 kg | IP20 | 84 - 328 W | 3 fasen 10 A gG | 80 Ohm | 1 | 1 | 2 | JA | JA |
C300-055-00069 PM | C300-055-00069 PM | C300-05500069A14100AB100 | 5 | 3 fasen 500-575 VAC | 3 fasen 500-575 VAC | 4,0 kW | 5,5 kW | 6,9 A | 10 A | 150% | 110% | 143 x 391 x 200 mm | 7,4 kg | IP20 | 136 - 474 W | 3 fasen 20 A gG | 80 Ohm | 1 | 1 | 2 | JA | JA |
C300-062-00330 PM | C300-062-00330 PM | C300-06200330A14100AB100 | 6 | 3 fasen 200-240 VAC | 3 fasen 200-240 VAC | 7,5 kW | 11 kW | 33 A | 50 A | 150% | 110% | 210 x 391 x 227 mm | 14 kg | IP20 | 264 - 490 W | 3 fasen 63 A gG | 10 Ohm | 1 | 1 | 2 | JA | JA |
C300-062-00440 PM | C300-062-00440 PM | C300-06200440A14100AB100 | 6 | 3 fasen 200-240 VAC | 3 fasen 200-240 VAC | 11 kW | 15 kW | 44 A | 58 A | 150% | 110% | 210 x 391 x 227 mm | 14 kg | IP20 | 350 - 528 W | 3 fasen 63 A gG | 10 Ohm | 1 | 1 | 2 | JA | JA |
C300-064-00350 PM | C300-064-00350 PM | C300-06400350A14100AB100 | 6 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 15 kW | 18,5 kW | 35 A | 38 A | 150% | 110% | 210 x 391 x 227 mm | 14 kg | IP20 | 354 - 657 W | 3 fasen 63 A gR | 20 Ohm | 1 | 1 | 2 | JA | JA |
C300-064-00420 PM | C300-064-00420 PM | C300-06400420A14100AB100 | 6 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 18,5 kW | 22 kW | 42 A | 48 A | 150% | 110% | 210 x 391 x 227 mm | 14 kg | IP20 | 413 - 657 W | 3 fasen 63 A gR | 20 Ohm | 1 | 1 | 2 | JA | JA |
C300-064-00470 PM | C300-064-00470 PM | C300-06400470A14100AB100 | 6 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 22 kW | 30 kW | 47 A | 63 A | 150% | 110% | 210 x 391 x 227 mm | 14 kg | IP20 | 462 - 659 W | 3 fasen 63 A gR | 20 Ohm | 1 | 1 | 2 | JA | JA |
C300-065-00100 PM | C300-065-00100 PM | C300-06500100A14100AB100 | 6 | 3 fasen 500-575 VAC | 3 fasen 500-575 VAC | 5,5 kW | 7,5 kW | 10 A | 12 A | 150% | 110% | 210 x 391 x 227 mm | 14 kg | IP20 | 166 - 525 W | 3 fasen 20 A gG | 15 Ohm | 1 | 1 | 2 | JA | JA |
C300-065-00150 PM | C300-065-00150 PM | C300-06500150A14100AB100 | 6 | 3 fasen 500-575 VAC | 3 fasen 500-575 VAC | 7,5 kW | 11 kW | 15 A | 17 A | 150% | 110% | 210 x 391 x 227 mm | 14 kg | IP20 | 236 - 356 W | 3 fasen 32 A gG | 15 Ohm | 1 | 1 | 2 | JA | JA |
C300-065-00190 PM | C300-065-00190 PM | C300-06500190A14100AB100 | 6 | 3 fasen 500-575 VAC | 3 fasen 500-575 VAC | 11 kW | 15 kW | 19 A | 22 A | 150% | 110% | 210 x 391 x 227 mm | 14 kg | IP20 | 284 - 580 W | 3 fasen 40 A gG | 15 Ohm | 1 | 1 | 2 | JA | JA |
C300-065-00230 PM | C300-065-00230 PM | C300-06500230A14100AB100 | 6 | 3 fasen 500-575 VAC | 3 fasen 500-575 VAC | 15 kW | 18,5 kW | 23 A | 27 A | 150% | 110% | 210 x 391 x 227 mm | 14 kg | IP20 | 343 - 696 W | 3 fasen 50 A gG | 15 Ohm | 1 | 1 | 2 | JA | JA |
C300-065-00290 PM | C300-065-00290 PM | C300-06500290A14100AB100 | 6 | 3 fasen 500-575 VAC | 3 fasen 500-575 VAC | 18,5 kW | 22 kW | 29 A | 34 A | 150% | 110% | 210 x 391 x 227 mm | 14 kg | IP20 | 456 - 839 W | 3 fasen 50 A gG | 15 Ohm | 1 | 1 | 2 | JA | JA |
C300-065-00350 PM | C300-065-00350 PM | C300-06500350A14100AB100 | 6 | 3 fasen 500-575 VAC | 3 fasen 500-575 VAC | 22 kW | 30 kW | 35 A | 43 A | 150% | 110% | 210 x 391 x 227 mm | 14 kg | IP20 | 550 - 840 W | 3 fasen 63 A gG | 15 Ohm | 1 | 1 | 2 | JA | JA |
C300-072-00610 PM | C300-072-00610 PM | C300-07200610A14100AB100 | 7 | 3 fasen 200-240 VAC | 3 fasen 200-240 VAC | 15 kW | 18,5 kW | 61 A | 75 A | 150% | 110% | 270 x 557 x 280 mm | 28 kg | IP20 | 433 - 894 W | 3 fasen 80 A gG | 4,5 Ohm | 1 | 1 | 2 | JA | JA |
C300-072-00750 PM | C300-072-00750 PM | C300-07200750A14100AB100 | 7 | 3 fasen 200-240 VAC | 3 fasen 200-240 VAC | 18,5 kW | 22 kW | 75 A | 94 A | 150% | 110% | 270 x 557 x 280 mm | 28 kg | IP20 | 529 - 899 W | 3 fasen 100 A gG | 4,5 Ohm | 1 | 1 | 2 | JA | JA |
C300-072-00830 PM | C300-072-00830 PM | C300-07200830A14100AB100 | 7 | 3 fasen 200-240 VAC | 3 fasen 200-240 VAC | 22 kW | 30 kW | 83 A | 117 A | 150% | 110% | 270 x 557 x 280 mm | 28 kg | IP20 | 589 - 1.004 W | 3 fasen 125 A gG | 4,5 Ohm | 1 | 1 | 2 | JA | JA |
C300-074-00660 PM | C300-074-00660 PM | C300-07400660A14100AB100 | 7 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 30 kW | 37 kW | 66 A | 79 A | 150% | 110% | 270 x 557 x 280 mm | 28 kg | IP20 | 616 - 1.242 W | 3 fasen 100 A gG | 7,5 Ohm | 1 | 1 | 2 | JA | JA |
C300-074-00770 PM | C300-074-00770 PM | C300-07400770A14100AB100 | 7 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 37 kW | 45 kW | 77 A | 94 A | 150% | 110% | 270 x 557 x 280 mm | 28 kg | IP20 | 723 - 1.266 W | 3 fasen 100 A gG | 7,5 Ohm | 1 | 1 | 2 | JA | JA |
C300-074-01000 PM | C300-074-01000 PM | C300-07401000A14100AB100 | 7 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 45 kW | 55 kW | 100 A | 112 A | 150% | 110% | 270 x 557 x 280 mm | 28 kg | IP20 | 906 - 1.247 W | 3 fasen 125 A gG | 7,5 Ohm | 1 | 1 | 2 | JA | JA |
C300-075-00440 PM | C300-075-00440 PM | C300-07500440A14100AB100 | 7 | 3 fasen 500-575 VAC | 3 fasen 500-575 VAC | 30 kW | 37 kW | 44 A | 53 A | 150% | 110% | 270 x 557 x 280 mm | 28 kg | IP20 | 700 - 1.358 W | 3 fasen 50 A gG | 11 Ohm | 1 | 1 | 2 | JA | JA |
C300-075-00550 PM | C300-075-00550 PM | C300-07500550A14100AB100 | 7 | 3 fasen 500-575 VAC | 3 fasen 500-575 VAC | 37 kW | 45 kW | 55 A | 73 A | 150% | 110% | 270 x 557 x 280 mm | 28 kg | IP20 | 759 - 1.375 W | 3 fasen 80 A gG | 11 Ohm | 1 | 1 | 2 | JA | JA |
C300-076-00190 PM | C300-076-00190 PM | C300-07600190A14100AB100 | 7 | 3 fasen 500-690 VAC | 3 fasen 500-690 VAC | 15 kW | 18,5 kW | 19 A | 23 A | 150% | 110% | 270 x 557 x 280 mm | 28 kg | IP20 | 303 - 970 W | 1 fase 25 A gG | 13 Ohm | 1 | 1 | 2 | JA | JA |
C300-076-00240 PM | C300-076-00240 PM | C300-07600240A14100AB100 | 7 | 3 fasen 500-690 VAC | 3 fasen 500-690 VAC | 18,5 kW | 22 kW | 24 A | 30 A | 150% | 110% | 270 x 557 x 280 mm | 28 kg | IP20 | 375 - 971 W | 3 fasen 32 A gG | 13 Ohm | 1 | 1 | 2 | JA | JA |
C300-076-00290 PM | C300-076-00290 PM | C300-07600290A14100AB100 | 7 | 3 fasen 500-690 VAC | 3 fasen 500-690 VAC | 22 kW | 30 kW | 29 A | 36 A | 150% | 110% | 270 x 557 x 280 mm | 28 kg | IP20 | 449 - 1.152 W | 3 fasen 40 A gG | 13 Ohm | 1 | 1 | 2 | JA | JA |
C300-076-00380 PM | C300-076-00380 PM | C300-07600380A14100AB100 | 7 | 3 fasen 500-690 VAC | 3 fasen 500-690 VAC | 30 kW | 37 kW | 38 A | 46 A | 150% | 110% | 270 x 557 x 280 mm | 28 kg | IP20 | 587 - 1.297 W | 3 fasen 50 A gG | 13 Ohm | 1 | 1 | 2 | JA | JA |
C300-076-00440 PM | C300-076-00440 PM | C300-07600440A14100AB100 | 1 | 3 fasen 500-690 VAC | 3 fasen 500-690 VAC | 37 kW | 45 kW | 44 A | 52 A | 150% | 110% | 270 x 557 x 280 mm | 28 kg | IP20 | 687 - 1.350 W | 3 fasen 50 A gG | 13 Ohm | 1 | 1 | 2 | JA | JA |
C300-076-00540 PM | C300-076-00540 PM | C300-07600540A14100AB100 | 7 | 3 fasen 500-690 VAC | 3 fasen 500-690 VAC | 45 kW | 55 kW | 54 A | 73 A | 150% | 110% | 270 x 557 x 280 mm | 28 kg | IP20 | 747 - 1.375 W | 3 fasen 80 A gG | 13 Ohm | 1 | 1 | 2 | JA | JA |
C300-082-01160 PM | C300-082-01160 PM | C300-08201160A14100AB100 | 8 | 3 fasen 200-240 VAC | 3 fasen 200-240 VAC | 30 kW | 37 kW | 116 A | 149 A | 150% | 110% | 310 x 804 x 290 mm | 52 kg | IP20 | 1.026 - 1.982 W | 3 fasen 200 A gR | 2,3 Ohm | 1 | 1 | 2 | JA | JA |
C300-082-01320 PM | C300-082-01320 PM | C300-08401320A14100AB100 | 8 | 3 fasen 200-240 VAC | 3 fasen 200-240 VAC | 37 kW | 45 kW | 132 A | 180 A | 150% | 110% | 310 x 804 x 290 mm | 52 kg | IP20 | 1.260 - 2.025 W | 3 fasen 200 A gR | 2,3 Ohm | 1 | 1 | 2 | JA | JA |
C300-084-01340 PM | C300-084-01340 PM | C300-08401340A14100AB100 | 8 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 55 kW | 75 kW | 134 A | 155 A | 150% | 110% | 310 x 804 x 290 mm | 52 kg | IP20 | 1.224 - 2.164 W | 3 fasen 250 A gR | 6,3 Ohm | 1 | 1 | 2 | JA | JA |
C300-084-01570 PM | C300-084-01570 PM | C300-08401570A14100AB100 | 8 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 75 kW | 90 kW | 157 A | 184 A | 150% | 110% | 310 x 804 x 290 mm | 52 kg | IP20 | 1.373 - 2.333 W | 3 fasen 250 A gR | 6,3 Ohm | 1 | 1 | 2 | JA | JA |
C300-085-00630 PM | C300-085-00630 PM | C300-08500630A14100AB100 | 8 | 3 fasen 500-575 VAC | 3 fasen 500-575 VAC | 45 kW | 55 kW | 63 A | 86 A | 150% | 110% | 310 x 804 x 290 mm | 52 kg | IP20 | 1.153 - 3.042 W | 3 fasen 125 A gR | 5,5 Ohm | 1 | 1 | 2 | JA | JA |
C300-085-00860 PM | C300-085-00860 PM | C300-08500860A14100AB100 | 8 | 3 fasen 500-575 VAC | 3 fasen 500-575 VAC | 55 kW | 75 kW | 86 A | 108 A | 150% | 110% | 310 x 804 x 290 mm | 52 | IP20 | 1.554 - 2.993 W | 3 fasen 160 A gR | 5,5 Ohm | 1 | 1 | 2 | JA | JA |
C300-086-00630 PM | C300-086-00630 PM | C300-08600630A14100AB100 | 8 | 3 fasen 500-690 VAC | 3 fasen 500-690 VAC | 55 kW | 75 kW | 63 A | 86 A | 150% | 110% | 310 x 804 x 290 mm | 52 | IP20 | 1.132 - 3.004 W | 3 fasen 125 A gR | 5,5 Ohm | 1 | 1 | 2 | JA | JA |
C300-086-00860 PM | C300-086-00860 PM | C300-08600860A14100AB100 | 8 | 3 fasen 500-690 VAC | 3 fasen 500-690 VAC | 75 kW | 90 kW | 86 A | 108 A | 150% | 110% | 310 x 804 x 290 mm | 52 kg | IP20 | 1.526 - 2.994 W | 3 fasen 160 A gR | 5,5 Ohm | 1 | 1 | 2 | JA | JA |
C300-092-01760 PM | C300-092-01760 PM | C300-09201760A14100AB100 | 9 | 3 fasen 200-240 VAC | 3 fasen 200-240 VAC | 45 kW | 55 kW | 176 A | 216 A | 150% | 110% | 310 x 1.108 x 290 mm | 66,5 kg | IP20 | 1.580 - 2.596 W | 3 fasen 250 A gR | 2 Ohm | 1 | 1 | 2 | JA | JA |
C300-092-02190 PM | C300-092-02190 PM | C300-09402190A14100AB100 | 9 | 3 fasen 200-240 VAC | 3 fasen 200-240 VAC | 55 kW | 75 kW | 219 A | 266 A | 150% | 110% | 310 x 1.108 x 290 mm | 66,5 kg | IP20 | 1.821 - 2.822 W | 3 fasen 315 A gR | 2 Ohm | 1 | 1 | 2 | JA | JA |
C300-094-02000 PM | C300-094-02000 PM | C300-09402000A14100AB100 | 9 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 90 kW | 110 kW | 200 A | 221 A | 150% | 110% | 310 x 1.108 x 290 mm | 66,5 kg | IP20 | 2.132 - 3.075 W | 3 fasen 315 A gR | 3,6 Ohm | 1 | 1 | 2 | JA | JA |
C300-094-02240 PM | C300-094-02240 PM | C300-09402240A14100AB100 | 9 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 110 kW | 132 kW | 224 A | 266 A | 150% | 110% | 310 x 1.108 x 290 mm | 66,5 kg | IP20 | 2.424 - 3.191 W | 3 fasen 315 A gR | 3,6 Ohm | 1 | 1 | 2 | JA | JA |
C300-095-01040 PM | C300-095-01040 PM | C300-09501040A14100AB100 | 9 | 3 fasen 500-575 VAC | 3 fasen 500-575 VAC | 75 kW | 90 kW | 104 A | 125 A | 150% | 110% | 310 x 1.108 x 290 mm | 66,5 kg | IP20 | 1.372 - 2.859 W | 3 fasen 150 A gR | 5,1 Ohm | 1 | 1 | 2 | JA | JA |
C300-095-01310 PM | C300-095-01310 PM | C300-09501310A14100AB100 | 9 | 3 fasen 500-575 VAC | 3 fasen 500-575 VAC | 90 kW | 110 kW | 131 A | 150 A | 150% | 110% | 310 x 1.108 x 290 mm | 66,5 kg | IP20 | 1.752 - 2.859 W | 3 fasen 200 A gR | 5,1 Ohm | 1 | 1 | 2 | JA | JA |
C300-096-01040 PM | C300-096-01040 PM | C300-09601040A14100AB100 | 9 | 3 fasen 500-690 VAC | 3 fasen 500-690 VAC | 90 kW | 110 kW | 104 A | 125 A | 150% | 110% | 310 x 1.108 x 290 mm | 66,5 kg | IP20 | 1.513 - 3.465 W | 3 fasen 150 A gR | 6,5 Ohm | 1 | 1 | 2 | JA | JA |
C300-096-01310 PM | C300-096-01310 PM | C300-09601310A14100AB100 | 9 | 3 fasen 500-690 VAC | 3 fasen 500-690 VAC | 110 kW | 132 kW | 131 A | 150 A | 150% | 110% | 310 x 1.108 x 290 mm | 66,5 kg | IP20 | 1.931 - 3.474 W | 3 fasen 200 A gR | 6,5 Ohm | 1 | 1 | 2 | JA | JA |
