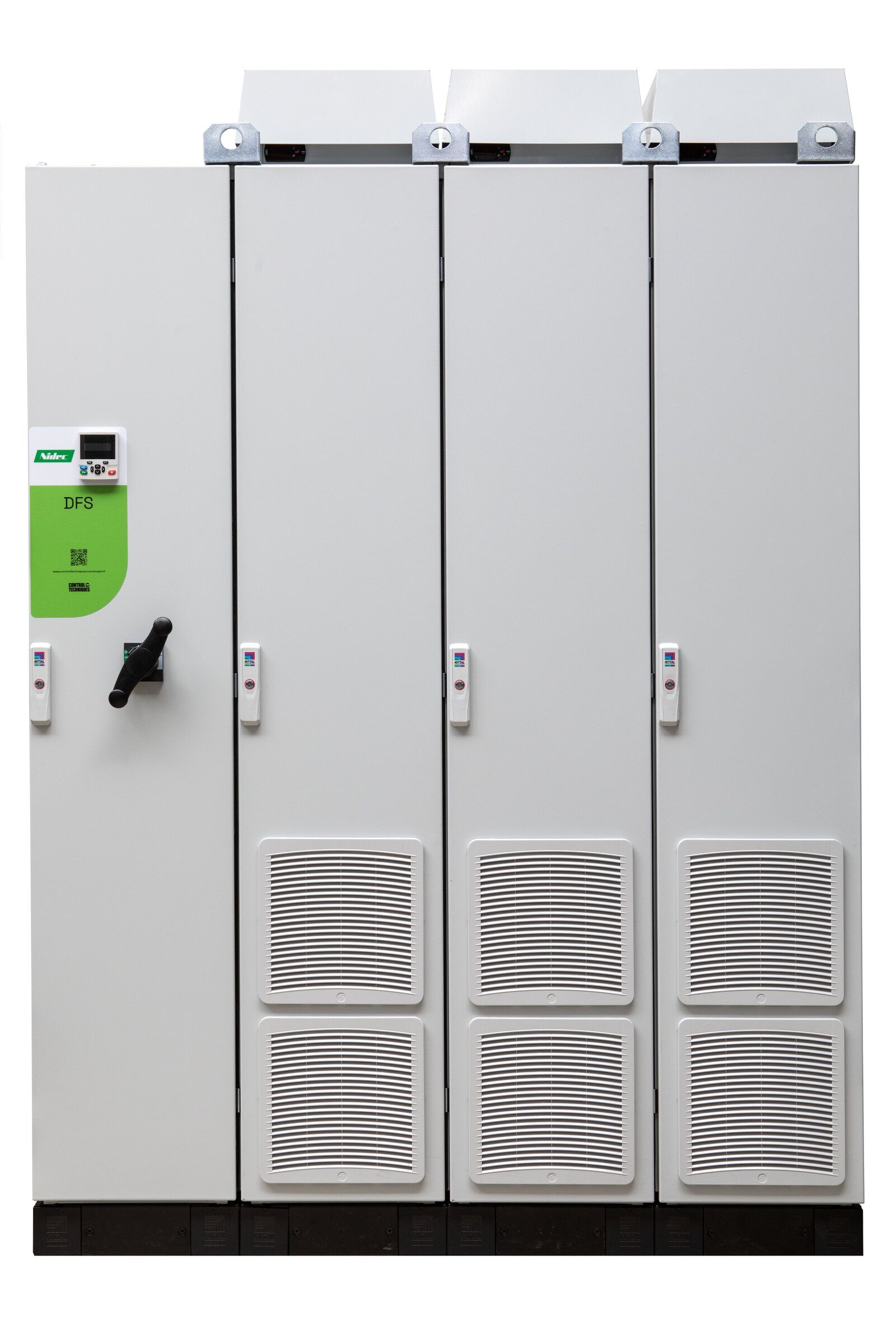

De DFS (Drive Freestanding) is een frequentieregelaar die vrij is neer te zetten in een technische ruimte of naast uw machine of applicatie. Ook geschikt voor samenbouw met MCC.
Gebruiksklare frequentieregelaar in systeemkast met 100 mm sokkel, inclusief snelle zekeringen, hoofdschakelaar, display met Real Time Clock op de voorzijde en dakventilator met thermostaat.
Uitvoering mogelijk op basis van diverse besturingsplatforms:
Leverbaar in IP23/IP44/IP54 met diverse opties, zoals:
DFS in de praktijk:
| Specificaties | |
|---|---|
| Life Cycle | Active |
| Range | Freestanding Drives |
| Vermogen | 90 - 2.660 kW |
| Stroom @ 40°C (A) | 104 - 4.820 A |
| Spanning | 400, 690 V |
| Maximum uitgangsfrequentie | 550 Hz |
| IP23 beschermingsgraad | |
| IP44 beschermingsgraad | |
| IP54 beschermingsgraad | |
| Conformal Coating | |
| EMC filter (EN61800-3) | |
| Communicatie en HMI | |
|---|---|
| LCD display | |
| Programmeren en diagnose via PC | |
| Artikel | Type | Frame | Voedingsspanning | Motorspanning | Vermogen Heavy Duty | Vermogen Normal Duty | Nominaalstroom Heavy Duty | Nominaalstroom Normal Duty | Piekstroom Heavy Duty | Piekstroom Normal Duty | Afmetingen (b x h x d) | Beschermingsgraad | SI-Slots | Safe Torque Off ingang(en) | On board PLC | On board communicatie | On board 24 V back up |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFS1-1-400-M700 | DFS1-1-400-M700 | 1 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 55 kW | 75 kW | 134 A | 155 A | 150% | 110% | 400 x 2.280 x 600 mm | IP23 | 3 | 1 | JA | Ethernet / Profinet | JA |
| DFS1-2-400-M700 | DFS1-2-400-M700 | 2 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 75 kW | 90 kW | 157 A | 184 A | 150% | 110% | 400 x 2.280 x 600 mm | IP23 | 3 | 1 | JA | Ethernet / Profinet | JA |
| DFS1-3-400-M700 | DFS1-3-400-M700 | 3 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 90 kW | 110 kW | 200 A | 221 A | 150% | 110% | 400 x 2.280 x 600 mm | IP23 | 3 | 1 | JA | Ethernet / Profinet | JA |
| DFS1-4-400-M700 | DFS1-4-400-M700 | 4 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 110 kW | 132 kW | 224 A | 266 A | 150% | 110% | 400 x 2.280 x 600 mm | IP23 | 3 | 1 | JA | Ethernet / Profinet | JA |
| DFS1-5-400-M700 | DFS1-5-400-M700 | 5 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 132 kW | 160 kW | 270 A | 320 A | 150% | 110% | 400 x 2.280 x 600 mm | IP23 | 3 | 1 | JA | Ethernet / Profinet | JA |
| DFS1-6-400-M700 | DFS1-6-400-M700 | 6 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 160 kW | 200 kW | 320 A | 361 A | 150% | 110% | 400 x 2.280 x 600 mm | IP23 | 3 | 1 | JA | Ethernet / Profinet | JA |
| DFS1-7-400-M700 | DFS1-7-400-M700 | 7 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 185 kW | 225 kW | 377 A | 437 A | 150% | 110% | 400 x 2.280 x 600 mm | IP23 | 3 | 1 | JA | Ethernet / Profinet | JA |
| DFS1-8-400-M700 | DFS1-8-400-M700 | 8 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 200 kW | 250 kW | 417 A | 487 A | 150% | 110% | 2.400 x 2.280 x 600 mm | IP23 | 3 | 1 | JA | Ethernet / Profinet | JA |
| DFS1-9-400-M700 | DFS1-9-400-M700 | 9 | 3 fasen 380-480 VAC | 3 fasen 380 - 480 V | 250 kW | 280 kW | 464 A | 507 A | 150% | 110% | 400 x 2.280 x 600 mm | IP23 | 3 | 1 | JA | Ethernet / Profinet | JA |
| DFS2-1-400-M700 | DFS2-1-400-M700 | 1 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 270 kW | 315 kW | 513 A | 608 A | 150% | 110% | 1.200 x 2.280 x 600 mm | IP23 | 3 | 1 | JA | Ethernet / Profinet | JA |
| DFS2-2-400-M700 | DFS2-2-400-M700 | 2 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 315 kW | 370 kW | 608 A | 686 A | 150% | 110% | 1.200 x 2.280 x 600 mm | IP23 | 3 | 1 | JA | Ethernet / Profinet | JA |
| DFS2-3-400-M700 | DFS2-3-400-M700 | 3 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 380 kW | 450 kW | 716 A | 830 A | 150% | 110% | 1.200 x 2.280 x 600 mm | IP23 | 3 | 1 | JA | Ethernet / Profinet | JA |
| DFS2-4-400-M700 | DFS2-4-400-M700 | 4 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 420 kW | 500 kW | 792 A | 925 A | 150% | 110% | 1.200 x 2.280 x 600 mm | IP23 | 3 | 1 | JA | Ethernet / Profinet | JA |
| DFS2-5-400-M700 | DFS2-5-400-M700 | 5 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 470 kW | 520 kW | 882 A | 963 A | 150% | 110% | 1.200 x 2.280 x 600 mm | IP23 | 3 | 1 | JA | Ethernet / Profinet | JA |
| DFS3-1-400-M700 | DFS3-1-400-M700 | 1 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 580 kW | 670 kW | 1.074 A | 1.245 A | 150% | 110% | 1.600 x 2.280 x 600 mm | IP23 | 3 | 1 | JA | Ethernet / Profinet | JA |
| DFS3-2-400-M700 | DFS3-2-400-M700 | 2 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 640 kW | 750 kW | 1.188 A | 1.388 A | 150% | 110% | 1.600 x 2.280 x 600 mm | IP23 | 3 | 1 | JA | Ethernet / Profinet | JA |
| DFS3-3-400-M700 | DFS3-3-400-M700 | 3 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 710 kW | 780 kW | 1.322 A | 1.445 A | 150% | 110% | 1.600 x 2.280 x 600 mm | IP23 | 3 | 1 | JA | Ethernet / Profinet | JA |
| DFS4-1-400-M700 | DFS4-1-400-M700 | 1 | 3 fasen 380-480 VAC | 3 fasen 380 - 480 V | 770 kW | 900 kW | 1.433 A | 1.661 A | 150% | 110% | 2.400 x 2.280 x 600 mm | IP23 | 3 | 1 | JA | Ethernet / Profinet | JA |
| DFS4-2-400-M700 | DFS4-2-400-M700 | 2 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 850 kW | 1.000 kW | 1.585 A | 1.851 A | 150% | 110% | 2.400 x 2.280 x 600 mm | IP23 | 3 | 1 | JA | Ethernet / Profinet | JA |
| DFS4-3-400-M700 | DFS4-3-400-M700 | 3 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 950 kW | 1.040 kW | 1.763 A | 1.926 A | 150% | 110% | 2.400 x 2.280 x 600 mm | IP23 | 3 | 1 | JA | Ethernet / Profinet | JA |
| DFS6-1-400-M700 | DFS6-1-400-M700 | 1 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 1.150 kW | 1.340 kW | 2.148 A | 2.490 A | 150% | 110% | 3.200 x 2.280 x 600 mm | IP23 | 3 | 1 | JA | Ethernet / Profinet | JA |
| DFS6-2-400-M700 | DFS6-2-400-M700 | 2 | 3 fasen 380-480 VAC | 3 fasen 380-480 VAC | 1.420 kW | 1.560 kW | 2.644 A | 2.890 A | 150% | 110% | 3.200 x 2.280 x 600 mm | IP23 | 3 | 1 | JA | Ethernet / Profinet | JA |
