Machine Control Studio

Machine Control Studio

Productbeschrijving

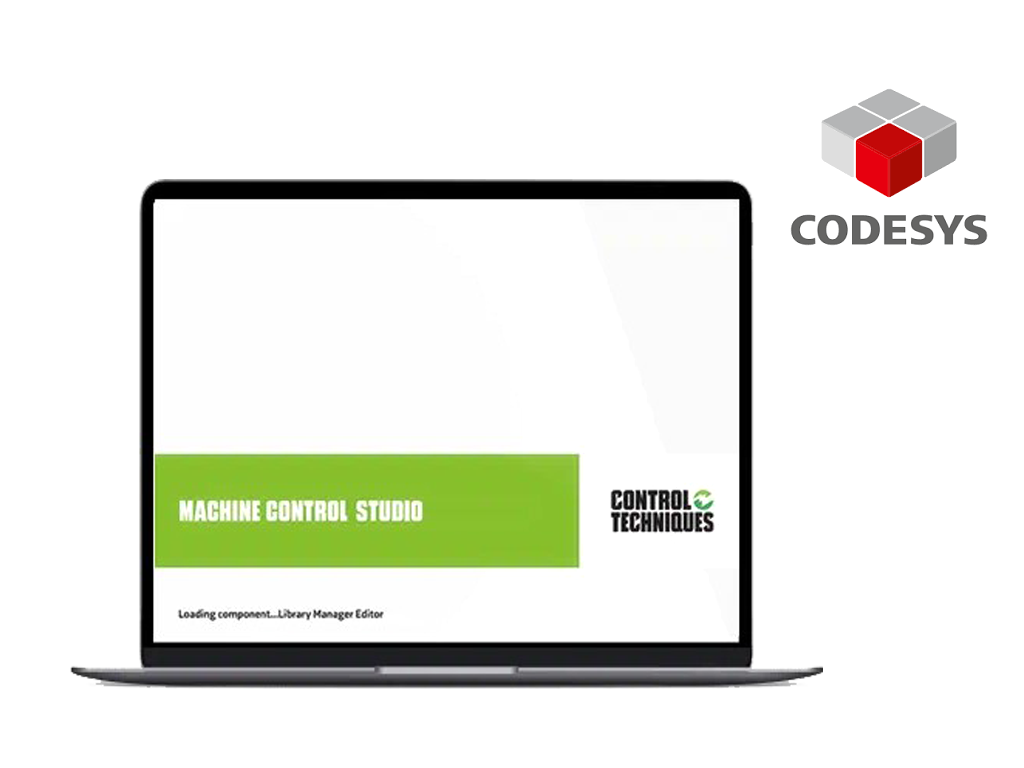

Programmeeromgeving (CoDeSys) voor de on-board PLC of MCi module.



  • Door gebruik van de on-board PLC in combinatie met de Machine Control Studio zal een externe PLC in veel gevallen overbodig zijn
  • Via de machine Control Studio heeft de gebruiker toegang tot de standaard beschikbare functies en functieblokken van CoDeSys en van derden
  • De gebruiker heeft in de Machine Control Studio onder andere de beschikking over mathematische functies, vergelijkingen, timers, counters, multiplexers, latches en bitmanupilatie
  • Voor tijdkritische afhandelingen is in de on-board PLC een real time task beschikbaar van 16ms, overige taken worden in een background task afgehandeld met een maximale scantijd van 256 ms
  • De on-board PLC heeft de beschikking over de volgende type variabelen: Boolean, integer (8 bit, 16 bit, 32 bit, met en zonder voorteken), floating point (64 bit), strings and time
  • Voor de Machine Control Studio is een menu beschikbaar van maximaal 30 parameters. Naam, functie en inhoud van deze parameters zijn door de gebruiker te definiëren en dit menu is toegankelijk via het toetsenbord
  • Programmeertalen: Structured Text (ST), Sequential Function Chart (SFC), Continuous Function Chart (CFC), Function Block Diagram (FBD), Ladder Logic Diagram (LD), Instruction List (IL)

Video

Video's zijn beschikbaar op het Nidec Drives Youtube kanaal.

Machine Control Studio Video's

Working with Onboard User Programs
Updating Devices in Machine Control Studio
Machine Control Studio Software Part 1: Introduction and getting started
Machine Control Studio Software Part 2: Libraries, tasks and development languages
Machine Control Studio Software Part 3: Motion Control using the SFC development language
Machine Control Studio and the Si-IO Module

Specificaties

Geschikt voor
Commander C200 check
Commander C300 (PM) check
Unidrive M200 check
Unidrive M201 check
Unidrive M300 check
Unidrive M400 check
Unidrive M600 check
Unidrive M700 check
Unidrive M701 check
Unidrive M702 check
MCi200/210 check
Powerdrive F300 check
HVAC Drive H300 check
Elevator Drive E300 check
Digitax HD check
Commander ID300/302 check
