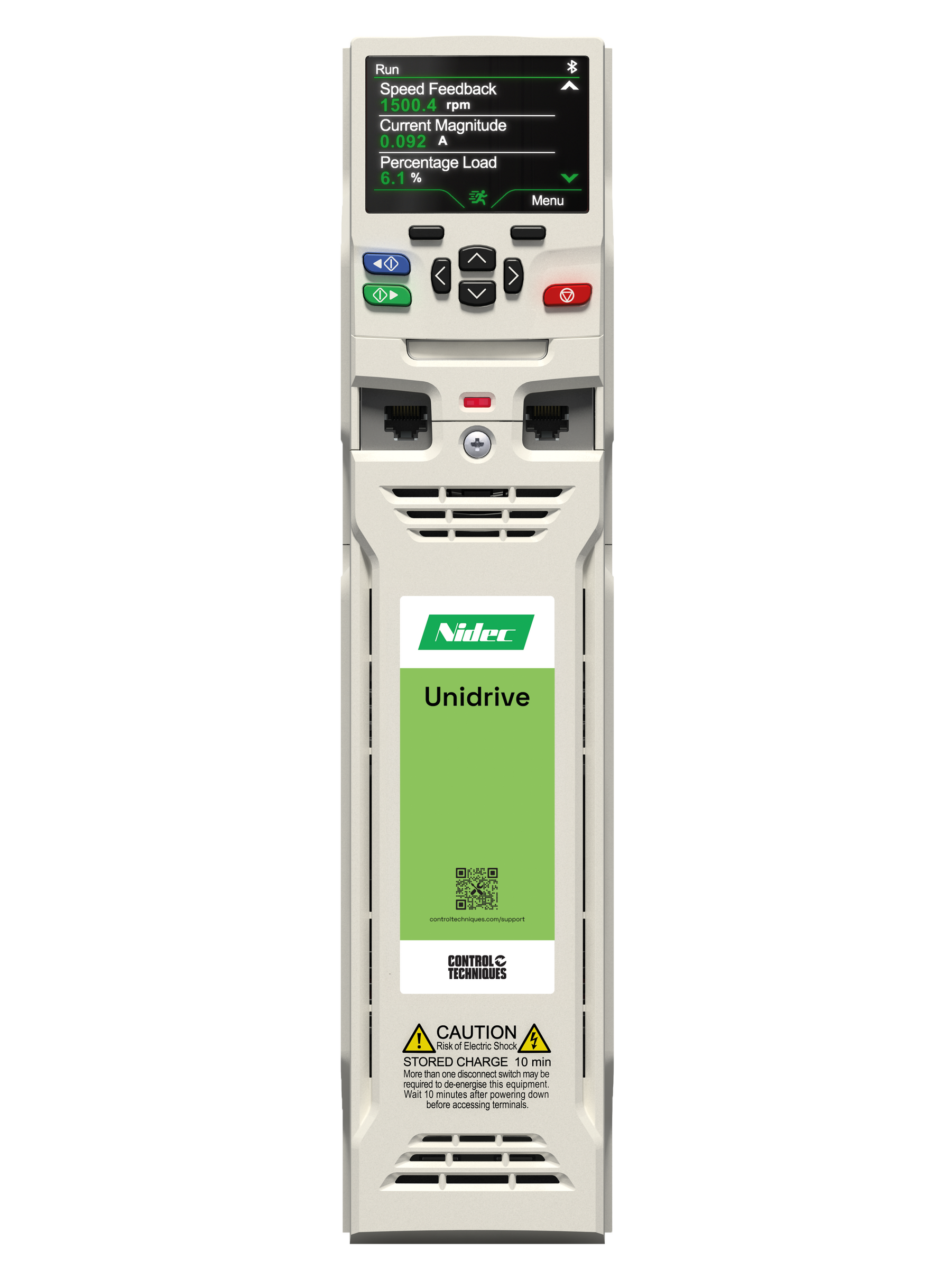

Unidrive M700 servoregelaar - Control Techniques

Unidrive M700 servoregelaar - Control Techniques
{%bestandOrigineleNaam%}

Productvideo

Download onze brochure

Downloads
Brochures & Catalogi arrow_right Handleidingen & Datasheets arrow_right Markten & Toepassingen arrow_right Engineering Documentatie & Files arrow_right Application Notes arrow_right EMC Datasheets arrow_right 2D/3D Tekeningen arrow_right EPLAN arrow_right Firmware arrow_right Veldbus communicatiebestanden arrow_right PC Tools arrow_right Certificaten en keurmerken arrow_right

Specificaties

Specificaties
Life Cycle Active
Range Servo Drives
Vermogen (kW) 0,75 - 280 kW
Stroom @ 40°C 2,5 - 507 A
Heavy Duty piekstroom (RFC) 200%, frame 9-11: 175%
Heavy Duty piekstroom (Open Loop) 150%
Normal Duty piekstroom 110%
Spanning 230, 400, 575, 690 V
Maximum uitgangsfrequentie 550 Hz
Schakelfrequentie 2, 3, 4, 6, 8, 12, 16 kHz
Beschermingsgraad IP20
Conformal Coating check
Remchopper check
EMC filter (EN61800-3) check
Control Mode
Open Loop Vector Control check
Open Loop V/Hz Mode fixed check
Open Loop V/Hz Mode kwadratisch check
RFC-A Open Loop Rotor Flux Control voor a-synchrone motoren check
RFC-A Closed Loop Rotor Flux Control voor a-synchrone motoren check
RFC-S Open Loop Rotor Flux Control voor permanent magneet motoren check
RFC-S Closed Loop Rotor Flux Control voor permanent magneet motoren check
Active Front End (AFE) check
I/O
+10 V uitgang (voor potmeter) check
+24 V uitgang check
Analoge ingang (V-mA) 1
Analoge ingang (V-Vdiff-mA) 1
Analoge ingang (V) / PTC of PT sensor ingang 1
Analoge uitgang (V) 2
Digitale ingang 3
Digitale ingang / Digitale uitgang 3
Relais 1
Encoder poort check
Gesimuleerde encoder uitgang check
Machine veiligheid
1 x Safe Torque Off (STO) terminal check
Communicatie en HMI
Ethernet onboard check
Ethernet TCP/IP onboard check
Modbus TCP/IP onboard check
Profinet RT onboard check
RTMoE onboard check
LCD display check
Programmeren en diagnose via PC check
Onboard intelligentie
PLC check
Real-time clock Optioneel met RTC Keypad
Digital lock control check
Advanced Motion Controller check
Onboard oscilloscoop check
Functionaliteit
24 V back up onboard check
Standby mode check
Remlogica check
Opties en adapters
SI-Optieslots 3
KI-Adapterslots 1
Artikel
Type
Artikel
Frame
Voedingsspanning
Motorspanning
Vermogen (kW)
Nominaalstroom
Piekstroom
Afmetingen (b x h x d)
Gewicht
Beschermingsgraad
Warmteverliezen @ 40°C (min-max)
Zekeringen (IEC)
Minimale remweerstandswaarde
SI-Slots
KI-slots
Safe Torque Off ingang(en)
On board PLC
On board communicatie
On board 24 V back up
M700-032-00050
M700-032-00050 M700-03200050A10100AB100 3 3 fasen 200-240 VAC 3 fasen 200-240 VAC 0,75 kW 5,0 A 200% 83 x 382 x 200 mm 4 kg IP20 74 - 122 W 3 fasen 16 A gG 22 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-032-00066
M700-032-00066 M700-03200066A10100AB100 3 3 fasen 200-240 VAC 3 fasen 200-240 VAC 1,1 kW 6,6 A 200% 83 x 382 x 200 mm 4 kg IP20 85 - 133 W 3 fasen 20 A gG 22 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-032-00080
M700-032-00080 M700-03200080A10100AB100 3 3 fasen 200-240 VAC 3 fasen 200-240 VAC 1,5 kW 8,0 A 200% 83 x 382 x 200 mm 4 kg IP20 92 - 151 W 3 fasen 20 A gG 22 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-032-00106
M700-032-00106 M700-03200106A10100AB100 3 3 fasen 200-240 VAC 3 fasen 200-240 VAC 2,2 kW 10,6 A 200% 83 x 382 x 200 mm 4 kg IP20 109 - 168 W 3 fasen 25 A gG 22 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-034-00025
M700-034-00025 M700-03400025A10100AB100 3 3 fasen 380-480 VAC 3 fasen 380-480 VAC 0,75 kW 2,5 A 200% 83 x 382 x 200 mm 4 kg IP20 67 - 141 W 3 fasen 10 A gG 74 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-034-00031
M700-034-00031 M700-03400031A10100AB100 3 3 fasen 380-480 VAC 3 fasen 380-480 VAC 1,1 kW 3,1 A 200% 83 x 382 x 200 mm 4 kg IP20 66 - 160 W 3 fasen 10 A gG 74 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-034-00045
M700-034-00045 M700-03400045A10100AB100 3 3 fasen 380-480 VAC 3 fasen 380-480 VAC 1,5 kW 4,5 A 200% 83 x 382 x 200 mm 4 kg IP20 79 - 167 W 3 fasen 10 A gG 74 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-034-00062
M700-034-00062 M700-03400062A10100AB100 3 3 fasen 380-480 VAC 3 fasen 380-480 VAC 2,2 kW 6,2 A 200% 83 x 382 x 200 mm 4 kg IP20 93 - 153 W 3 fasen 20 A gG 74 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-034-00078
M700-034-00078 M700-03400078A10100AB100 3 3 fasen 380-480 VAC 3 fasen 380-480 VAC 3,0 kW 7,8 A 200% 83 x 382 x 200 mm 4,5 kg IP20 109 - 212 W 3 fasen 20 A gG 50 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-034-00100
M700-034-00100 M700-03400100A10100AB100 3 3 fasen 380-480 VAC 3 fasen 380-480 VAC 4,0 kW 10,0 A 200% 83 x 382 x 200 mm 4,5 kg IP20 131 - 209 W 3 fasen 20 A gG 50 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-042-00137
M700-042-00137 M700-04200137A10100AB100 4 3 fasen 200-240 VAC 3 fasen 200-240 VAC 3,0 kW 13,7 A 200% 125 x 391 x 200 mm 6,5 kg IP20 138 - 273 W 3 fasen 25 A gG 18 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-042-00185
M700-042-00185 M700-04200185A10100AB100 4 3 fasen 200-240 VAC 3 fasen 200-240 VAC 4,0 kW 18,5 A 200% 125 x 391 x 200 mm 6,5 kg IP20 176 - 314 W 3 fasen 32 A gG 18 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-044-00150
M700-044-00150 M700-04400150A10100AB100 4 3 fasen 380-480 VAC 3 fasen 380-480 VAC 5,5 kW 15,0 A 200% 125 x 391 x 200 mm 6,5 kg IP20 180 - 325 W 3 fasen 25 A gG 37 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-044-00172
M700-044-00172 M700-04400172A10100AB100 4 3 fasen 380-480 VAC 3 fasen 380-480 VAC 7,5 kW 17,2 A 200% 125 x 391 x 200 mm 6,5 kg IP20 199 - 329 W 3 fasen 32 A gG 37 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-052-00250
M700-052-00250 M700-05200250A10100AB100 5 3 fasen 200-240 VAC 3 fasen 200-240 VAC 5,5 kW 25 A 200% 143 x 391 x 200 mm 7,4 kg IP20 236 - 356 W 3 fasen 40 A gG 19 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-054-00270
M700-054-00270 M700-05400270A10100AB100 5 3 fasen 380-480 VAC 3 fasen 380-480 VAC 11 kW 27 A 200% 143 x 391 x 200 mm 7,4 kg IP20 276 - 362 W 3 fasen 40 A gG 38 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-054-00300
M700-054-00300 M700-05400300A10100AB100 5 3 fasen 380-480 VAC 3 fasen 380-480 VAC 15 kW 30 A 200% 143 x 391 x 200 mm 7,4 kg IP20 297 - 441 W 3 fasen 40 A gG 22 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-062-00330
M700-062-00330 M700-06200330A10100AB100 6 3 fasen 200-240 VAC 3 fasen 200-240 VAC 7,5 kW 33 A 200% 210 x 391 x 227 mm 14 kg IP20 264 - 490 W 3 fasen 63 A gG 10 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-062-00440
M700-062-00440 M700-06200440A10100AB100 6 3 fasen 200-240 VAC 3 fasen 200-240 VAC 11 kW 44 A 200% 210 x 391 x 227 mm 14 kg IP20 350 - 528 W 3 fasen 63 A gG 10 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-064-00350
M700-064-00350 M700-06400350A10100AB100 6 3 fasen 380-480 VAC 3 fasen 380-480 VAC 15 kW 35 A 200% 210 x 391 x 227 mm 14 kg IP20 354 - 657 W 3 fasen 63 A gR 20 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-064-00420
M700-064-00420A M700-06400420A10100AB100 6 3 fasen 380-480 VAC 3 fasen 380-480 VAC 18,5 kW 42 A 200% 210 x 391 x 227 mm 14 kg IP20 413 - 657 W 3 fasen 63 A gR 20 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-064-00470
M700-064-00470 M700-06400470A10100AB100 6 3 fasen 380-480 VAC 3 fasen 380-480 VAC 22 kW 47 A 200% 210 x 391 x 227 mm 14 kg IP20 462 - 659 W 3 fasen 63 A gR 20 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-072-00610
M700-072-00610 M700-07200610A10100AB100 7 3 fasen 200-240 VAC 3 fasen 200-240 VAC 15 kW 61 A 200% 270 x 557 x 280 mm 28 kg IP20 433 - 894 W 3 fasen 80 A gG 4,5 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-072-00750
M700-072-00750 M700-07200750A10100AB100 7 3 fasen 200-240 VAC 3 fasen 200-240 VAC 18,5 kW 75 A 200% 270 x 557 x 280 mm 28 kg IP20 529 - 899 W 3 fasen 100 A gG 4,5 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-072-00830
M700-072-00830 M700-07200830A10100AB100 7 3 fasen 200-240 VAC 3 fasen 200-240 VAC 22 kW 83 A 200% 270 x 557 x 280 mm 28 kg IP20 589 - 1.004 W 3 fasen 125 A gG 4,5 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-074-00660
M700-074-00660 M700-07400660A10100AB100 7 3 fasen 380-480 VAC 3 fasen 380-480 VAC 30 kW 66 A 200% 270 x 557 x 280 mm 28 kg IP20 616 - 1.242 W 3 fasen 100 A gG 7,5 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-074-00770
M700-074-00770 M700-07400770A10100AB100 7 3 fasen 380-480 VAC 3 fasen 380-480 VAC 37 kW 77 A 200% 270 x 557 x 280 mm 28 kg IP20 723 - 1.266 W 3 fasen 100 A gG 7,5 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-074-01000
M700-074-01000 M700-07401000A10100AB100 7 3 fasen 380-480 VAC 3 fasen 380-480 VAC 45 kW 100 A 200% 270 x 557 x 280 mm 28 kg IP20 906 - 1.247 W 3 fasen 125 A gG 7,5 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-082-01160
M700-082-01160 M700-08201160A10100AB100 8 3 fasen 200-240 VAC 3 fasen 200-240 VAC 30 kW 116 A 200% 310 x 804 x 290 mm 52 kg IP20 1.026 - 1.982 W 3 fasen 200 A gR 2,3 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-082-01320
M700-082-01320 M700-08201320A10100AB100 8 3 fasen 200-240 VAC 3 fasen 200-240 VAC 37 kW 132 A 200% 310 x 804 x 290 mm 52 kg IP20 1.260 - 2.025 W 3 fasen 200 A gR 2,3 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-084-01340
M700-084-01340 M700-08401340A10100AB100 8 3 fasen 380-480 VAC 3 fasen 380-480 VAC 55 kW 134 A 200% 310 x 804 x 290 mm 52 kg IP20 1.224 - 2.164 W 3 fasen 250 A gR 6,3 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-084-01570
M700-084-01570 M700-08401570A10100AB100 8 3 fasen 380-480 VAC 3 fasen 380-480 VAC 75 kW 157 A 200% 310 x 804 x 290 mm 52 kg IP20 1.373 - 2.333 W 3 fasen 250 A gR 6,3 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-092-01760
M700-092-01760 M700-09201760A10100AB100 9A 3 fasen 200-240 VAC 3 fasen 200-240 VAC 45 kW 176 A 175% 310 x 1.108 x 290 mm 66,5 kg IP20 1.580 - 2.596 W 3 fasen 250 A gR 2 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-092-02190
M700-092-02190 M700-09202190A10100AB100 9A 3 fasen 200-240 VAC 3 fasen 200-240 VAC 55 kW 219 A 175% 310 x 1.108 x 290 mm 66,5 kg IP20 1.821 - 2.822 W 3 fasen 315 A gR 2 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-094-02000
M700-094-02000 M700-09402000A10100AB100 9A 3 fasen 380-480 VAC 3 fasen 380-480 VAC 90 kW 200 A 175% 310 x 1.108 x 290 mm 66,5 kg IP20 2.132 - 3.075 W 3 fasen 315 A gR 3,6 Ohm 3 1 1 JA Ethernet / Profinet JA
M700-094-02240
M700-094-02240 M700-09402240A10100AB100 9A 3 fasen 380-480 VAC 3 fasen 380-480 VAC 110 kW 224 A 175% 310 x 1.108 x 290 mm 66,5 kg IP20 2.424 - 3.191 W 3 fasen 315 A gR 3,6 Ohm 3 1 1 JA Ethernet / Profinet JA
